cbaWorkflow : Oozie installation

Preparation
Compile Oozie from source
Configuration
Database selection
Starting the server
UPDATING shared libraries.
File system action
shell action
Email action

Preparation

create user oozie at all the nodes

Oozie server will be installed at the namenode1

Oozie clients will be installed at r01edge and r02edge

export OOZIE_URL=http://namenode1:11000/oozie

update namenode1 core-site.xml by adding the following stanzas and restart the cluster:

<property>
<name>hadoop.proxyuser.oozie.groups</name>
<value>*</value>
</property>

<property>
<name>hadoop.proxyuser.oozie.hosts</name>
<value>*</value>
</property>

tar xzvf oozie-5.2.0.tar.gz

Compile Oozie from source

cd oozie-5.2.0

bin/mkdistro.sh -Phadoop-3 -Ptez -Puber -DskipTests

cp -r /home/oozie/oozie-5.2.0/distro/target/oozie-5.2.0-distro/oozie* oozie

Create shared libraries

cd /home/oozie/oozie

mkdir libext

pscp postgresql-42.2.14.jar oozie@namenode1:/home/oozie/oozie/libext

pscp ext-2.2.zip oozie@namenode1:/home/oozie/oozie/libext

oozie-setup.sh sharelib create -fs hdfs://namenode1:8020/user/oozie/share/lib

log4j:WARN No appenders could be found for logger (org.apache.hadoop.util.Shell).
log4j:WARN Please initialize the log4j system properly.
log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info.
Found Hadoop that does not support Erasure Coding. Not taking any action.
the destination path for sharelib is: /user/oozie/share/lib/lib_20200621141415

this will put the console and postgresql driver in war.

Configuration

as root:

cp -r /home/oozie/oozie /app/oozie

chown -R oozie:oozie /app/oozie

as oozie

cd /app/oozie/conf

vi oozie-site.xml

<property>
<name>oozie.service.JPAService.jdbc.driver</name>
<value>org.postgresql.Driver</value>
<description>
JDBC driver class.
</description>
</property>

<property>
<name>oozie.service.JPAService.jdbc.url</name>
<value>jdbc:postgresql://r02edge:5432/oozie</value>
<description>
JDBC URL.
</description>
</property>

<property>
<name>oozie.service.JPAService.jdbc.username</name>
<value>oozie</value>
<description>
DB user name.
</description>
</property>

<property>
<name>oozie.service.JPAService.jdbc.password</name>
<value>mYpAAssWrd</value>
<description>
DB user password.

</description>
</property>

</configuration>

Database selection

su - postgres

psql
create a new user:
create role oozie with login password 'sOmePasWD' valid until 'infinity';

create a database for the user:
postgres=# create database oozie with encoding='UTF8' owner=oozie connection limit=-1;
CREATE DATABASE

grant all privileges:
postgres=# grant all privileges on database oozie to oozie;
GRANT
postgres=# \q

su - oozie

populate the database schema:

bin/ooziedb.sh create -sqlfile oozie.sql -run

........................

DONE
Creating composite indexes
DONE
Create OOZIE_SYS table
DONE

Oozie DB has been created for Oozie version '5.2.0'

The SQL commands have been written to: oozie.sql

Starting the server

bin/oozied.sh start

............................

inflating: /app/oozie/embedded-oozie-server/webapp/ext-2.2/air/src/Sound.js
creating: /app/oozie/embedded-oozie-server/webapp/ext-2.2/air/src/sql/
inflating: /app/oozie/embedded-oozie-server/webapp/ext-2.2/air/src/sql/AirConnection.js
inflating: /app/oozie/embedded-oozie-server/webapp/ext-2.2/air/src/sql/Connection.js
inflating: /app/oozie/embedded-oozie-server/webapp/ext-2.2/air/src/sql/Proxy.js
inflating: /app/oozie/oozie/embedded-oozie-server/webapp/ext-2.2/air/src/sql/Table.js
inflating:/app/oozie/oozie/embedded-oozie-server/webapp/ext-2.2/air/src/SystemMenu.js
inflating: /app/oozie/embedded-oozie-server/webapp/ext-2.2/air/src/SystemTray.js
inflating: /app/oozie/embedded-oozie-server/webapp/ext-2.2/adapter/yui/yui-utilities.js

INFO: Oozie is ready to be started

Setting up oozie DB

Validate DB Connection
DONE
DB schema exists

The SQL commands have been written to: /tmp/ooziedb-5847608831844515011.sql

Oozie server started - PID: 5077.

bin/oozie admin -oozie http://r02edge:11000/oozie -status
log4j:WARN No appenders could be found for logger (org.apache.hadoop.security.authentication.client.KerberosAuthenticator).
log4j:WARN Please initialize the log4j system properly.
log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info.
System mode: NORMAL
[oozie@r02edge oozie]$

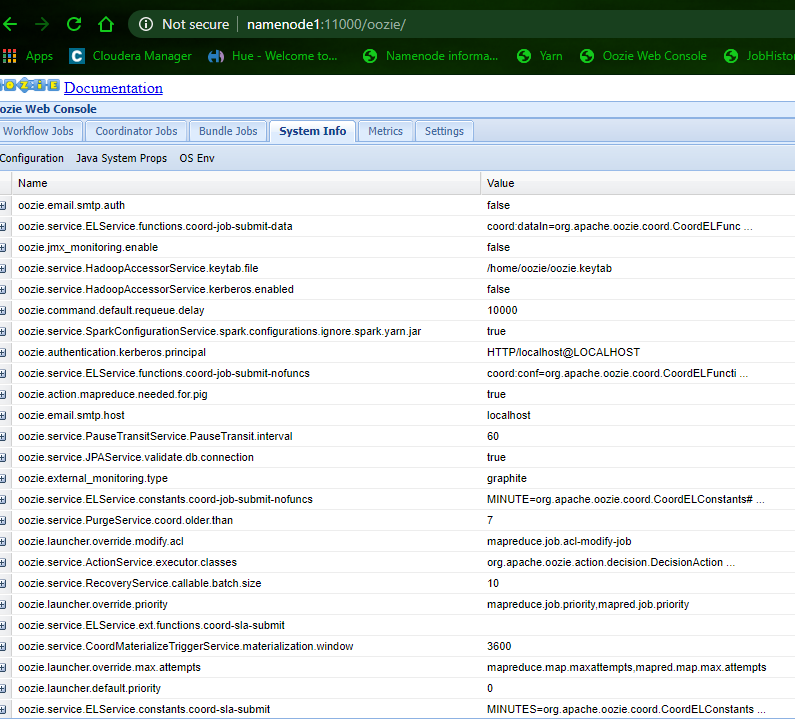

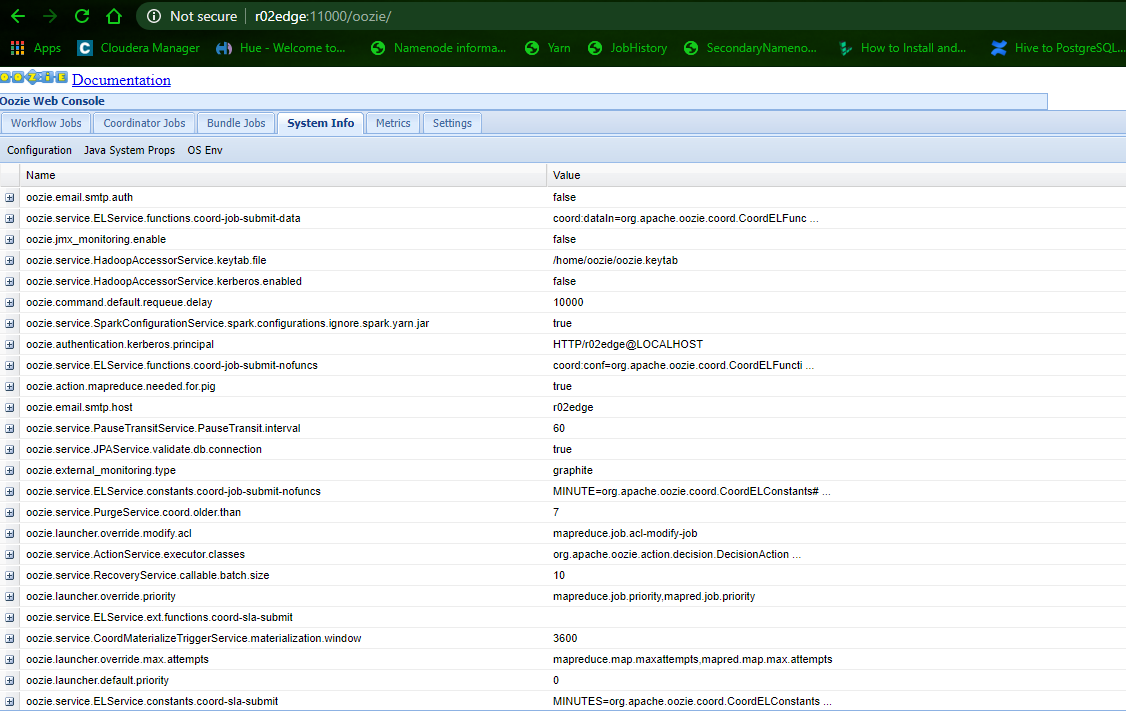

Check the web console:

http://namenode1:11000

Check the shared libraries available to Oozie:

oozie admin -shareliblist
log4j:WARN No appenders could be found for logger (org.apache.hadoop.security.authentication.client.KerberosAuthenticator).
log4j:WARN Please initialize the log4j system properly.
log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info.
[Available ShareLib]
hive
distcp
git
mapreduce-streaming
spark
oozie
hcatalog
hive2
sqoop
pig

UPDATING shared libraries.

unpack oozie-sharelib-5.2.0.tar.gz in /app/oozie
go to /app/oozie/share/lib/spark and replace the libraries with the versions for spark 3 and scala 2.12
go to /app/oozie/share/lib/hive2 and replace the hive libraries with the versions for Hive 3
Update the shared libraries:

oozie-setup.sh sharelib create -fs hdfs://namenode1:8020/user/oozie/share/lib -locallib /app/oozie/share

oozie

check that the 2.12 versions are now installed in oozie shared libs folder:

hdfs dfs -ls hdfs://namenode1:8020/user/oozie/share/lib/lib_20200715181359/spark

oozie admin -sharelibupdate

[ShareLib update status]
sharelibDirOld = hdfs://namenode1:8020/user/oozie/share/lib/lib_20200715181359
host = http://0.0.0.0:11000/oozie
sharelibDirNew = hdfs://namenode1:8020/user/oozie/share/lib/lib_20200716114006
status = Successful

restart the server:

oozied.sh stop

oozied.sh start

oozie admin -shareliblist spark

oozie admin -shareliblist hive2

copy the client to r02edge into the directory /app/oozie

set the PATH

export PATH=/app/oozie/bin:${PATH}

set the URL

export OOZIE_URL=http://namenode1:11000/oozie

verify connection to Oozie server

oozie admin -status

System mode: NORMAL

File system action

test oozie with filesystem action:

mkdir -p projects/filetest

cd filetest

[oozie@r02edge filetest] vi job.properties

nameNode=hdfs://namenode1:8020
jobTracker=namenode2.custom-built-apps.com:8032
bundle_root=${nameNode}/user/oozie/filetest
wf_root=${bundle_root}/workflows
oozie.wf.application.path=${wf_root}/filetest.xml
oozie.use.system.libpath=true

[oozie@r02edge filetest] vi run.sh

#!/bin/sh

oozie job -config job.properties -run

[oozie@r02edge filetest] chmod 755 run.sh

[oozie@r02edge filetest] mkdir workflows

[oozie@r02edge filetest] cd workflows

[oozie@r02edge filetest] vi filetest.xml

<workflow-app name="wfl_makefile" xmlns="uri:oozie:workflow:0.5">
<start to="fsaction"/>
<kill name="Kill">
<message>Action failed, error message[${wf:errorMessage(wf:lastErrorNode())}]</message>
</kill>
<action name="fsaction">
<fs>
<touchz path='${nameNode}/user/oozie/myfile' />
</fs>
<ok to="End"/>
<error to="Kill" />
</action>
<end name="End"/>
</workflow-app>

[oozie@r02edge filetest] oozie validate filetest.xml

Valid workflow-app

cd $HOME/projects

hdfs dfs -put filetest

hdfs dfs -ls -R filetest

cd filetest

./run.sh

job: 0000000-200704150138282-oozie-oozi-W

[oozie@r02edge filetest]$ oozie job -info 0000000-200704150138282-oozie-oozi-W
log4j:WARN No appenders could be found for logger (org.apache.hadoop.security.authentication.client.KerberosAuthenticator).
log4j:WARN Please initialize the log4j system properly.
log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info.
Job ID : 0000000-200704150138282-oozie-oozi-W
------------------------------------------------------------------------------------------------------------------------------------
Workflow Name : wfl_makefile
App Path : hdfs://namenode1:8020/user/oozie/filetest/workflows/filetest.xml
Status : SUCCEEDED
Run : 0
User : oozie
Group : -
Created : 2020-07-04 20:07 GMT
Started : 2020-07-04 20:07 GMT
Last Modified : 2020-07-04 20:07 GMT
Ended : 2020-07-04 20:07 GMT
CoordAction ID: -

Actions
------------------------------------------------------------------------------------------------------------------------------------
ID Status Ext ID Ext Status Err Code
------------------------------------------------------------------------------------------------------------------------------------
0000000-200704150138282-oozie-oozi-W@:start: OK - OK -
------------------------------------------------------------------------------------------------------------------------------------
0000000-200704150138282-oozie-oozi-W@fsaction OK - OK -
------------------------------------------------------------------------------------------------------------------------------------
0000000-200704150138282-oozie-oozi-W@End OK - OK -
------------------------------------------------------------------------------------------------------------------------------------

hdfs dfs -ls

...

myfile

....

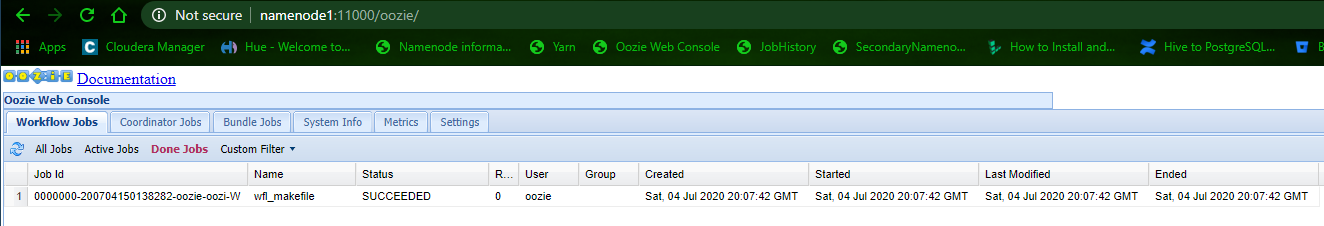

Check the Oozie webconsole: http://namenode1:11000/oozie

shell action

out of the box problem the action is running 10 minutes before transition.

temporary solution: decrease the Action checker interval(default is 600 sec, exactly 10 minutes)

vi oozie-site.xml

<property>
<name>oozie.service.ActionCheckerService.action.check.delay</name>
<value>30</value>
</property>

mkdir $HOME/ projects/oozie/shell

cd $HOME/ projects/oozie/shell

create a job.properties file:

vi job.properties

nameNode=hdfs://namenode1:8020
jobTracker=namenode2.custom-built-apps.com:8032
bundle_root=${nameNode}/user/dataexplorer1/oozie/shell
wf_root=${bundle_root}/workflows
oozie.wf.application.path=${wf_root}/copyfile.xml
oozie.use.system.libpath=true
user.name=dataexplorer1
filename=zfile

mkdir workflows

cd workflows

create a shell script

vi copyFile.sh

#!/bin/sh
filename=$1
hdfs dfs -cp /user/dataexplorer1/test /user/dataexplorer1/${filename}
exit 0

create a workflow.xml:

vi copyfile.xml

<workflow-app name="wfl_copyfile" xmlns="uri:oozie:workflow:0.5">
<start to="shellCopy1"/>
<kill name="Kill">
<message>Action failed, error message[${wf:errorMessage(wf:lastErrorNode())}]</message>
</kill>

<action name="shellCopy1">
<shell xmlns="uri:oozie:shell-action:0.1">
<job-tracker>${jobTracker}</job-tracker>
<name-node>${nameNode}</name-node>
<exec>copyFile.sh</exec>
<argument>${filename}</argument>
<env-var>HADOOP_USER_NAME=${wf:user()}</env-var>
<file>${wf_root}/copyFile.sh#copyFile.sh</file>
<capture-output/>
</shell>
<ok to="shellCopy2"/>
<error to="Kill"/>
</action>

<action name="shellCopy2">
<shell xmlns="uri:oozie:shell-action:0.1">
<job-tracker>${jobTracker}</job-tracker>
<name-node>${nameNode}</name-node>
<exec>copyFile.sh</exec>
<argument>${filename}_copy</argument>
<env-var>HADOOP_USER_NAME=${wf:user()}</env-var>
<file>${wf_root}/copyFile.sh#copyFile.sh</file>
<capture-output/>
</shell>
<ok to="End"/>
<error to="Kill"/>
</action>

Put the files into hdfs:

cd $HOME/projects/oozie

hdfs dfs -put shell oozie

Run the application:

cd $HOME/projects/oozie/shell

oozie job -config job.properties -run

job: 0000001-200716154123757-oozie-oozi-W

check the progress:

[dataexplorer1@r02edge shell]$ oozie job -info 0000001-200716154123757-oozie-oozi-W
Job ID : 0000001-200716154123757-oozie-oozi-W
------------------------------------------------------------------------------------------------------------------------------------
Workflow Name : wfl_copyfile
App Path : hdfs://namenode1:8020/user/dataexplorer1/oozie/shell/workflows/copyfile.xml
Status : SUCCEEDED
Run : 0
User : dataexplorer1
Group : -
Created : 2020-07-16 19:43 GMT
Started : 2020-07-16 19:43 GMT
Last Modified : 2020-07-16 19:45 GMT
Ended : 2020-07-16 19:45 GMT
CoordAction ID: -

Actions
------------------------------------------------------------------------------------------------------------------------------------
ID Status Ext ID Ext Status Err Code
------------------------------------------------------------------------------------------------------------------------------------
0000001-200716154123757-oozie-oozi-W@:start: OK - OK -
------------------------------------------------------------------------------------------------------------------------------------
0000001-200716154123757-oozie-oozi-W@shellCopy1 OK application_1593903918800_0138SUCCEEDED -
------------------------------------------------------------------------------------------------------------------------------------
0000001-200716154123757-oozie-oozi-W@shellCopy2 OK application_1593903918800_0139SUCCEEDED -
------------------------------------------------------------------------------------------------------------------------------------
0000001-200716154123757-oozie-oozi-W@End OK - OK -
------------------------------------------------------------------------------------------------------------------------------------

[dataexplorer1@r02edge shell]$ hdfs dfs -ls

-rw-r--r-- 3 dataexplorer1 hadoop 83 2020-07-16 15:43 zfile
-rw-r--r-- 3 dataexplorer1 hadoop 83 2020-07-16 15:44 zfile_copy

Email action

mkdir -p $HOME/oozie/email/workflows

cd $HOME/oozie/email/workflows

vi email.xml

<workflow-app name="wf_gmail" xmlns="uri:oozie:workflow:0.1">
<start to="sendEmail"/>
<action name="sendEmail">
<email xmlns="uri:oozie:email-action:0.1">
<to>boris.alexandrov@hotmail.ca</to>
<cc>boris.alexandrov@outlook.com</cc>
<subject>Email notifications for ${wf:id()}</subject>
<body>The wf ${wf:id()} successfully completed.</body>
</email>
<ok to="End"/>
<error to="Kill"/>
</action>
<kill name="Kill"> <message>Action failed, error message[${wf:errorMessage(wf:lastErrorNode())}]</message> </kill>
<end name="End"/>
</workflow-app>

cd ..

vi job.properties

nameNode=hdfs://namenode1:8020
jobTracker=namenode2.custom-built-apps.com:8032
bundle_root=${nameNode}/user/dataexplorer1/oozie/email
wf_root=${bundle_root}/workflows
oozie.wf.application.path=${wf_root}/email.xml
oozie.use.system.libpath=true
user.name=dataexplorer1

hdfs dfs -put email oozie

oozie-site.xml

<property>
<name>oozie.email.smtp.host</name>
<value>smtpout.secureserver.net</value>
</property>

<property>
<name>oozie.email.smtp.port</name>
<value>587</value>
</property>

<property>
<name>oozie.email.from.address</name>
<value>info@custom-built-apps.com</value>
</property>

<property>
<name>oozie.email.smtp.auth</name>
<value>true</value>
</property>

<property>
<name>oozie.email.smtp.starttls.enable</name>
<value>true</value>
</property>

<property>
<name>oozie.email.smtp.username</name>
<value>info@custom-built-apps.com</value>
</property>
<property>
<name>oozie.email.smtp.password</name>
<value>Password</value>
</property>
